Facility

MATERIALS TESTING MACHINE

■ Model: LS5 - Universal Testing Machine
■ Max. Capacity: 500kgf (5,000N) max
■ Crosshead travel range: 800mm
■ Test speed: 0.01 – 1,016 mm/min. up to 500kgf
■ Column distance: Single Column
■ Load Resolution: 0.0001N (0.00001kgf)
■ Load accuracy: Better than +/- 0.5% of reading
■ Extension resolution: Better than +/- 0.15 micron
■ Data acquisition rate: 8 kHz
■ Dimensions: 460mm (w) x 557mm (d) x 1001mm (h)
■ Weight: 52kg net

ULTRASONIC ATOMIZER

■ Model: SONOZAP 130K50ST
■ Frequency: 130 kHz
■ Flow Rate: 0 - 20 ml/min
■ Drop Diameter (microns): 11.8
■ Particle Distribution Data: DATA
■ Photo: PHOTO
■ Drawing: DWG
■ Weight (grams): 92

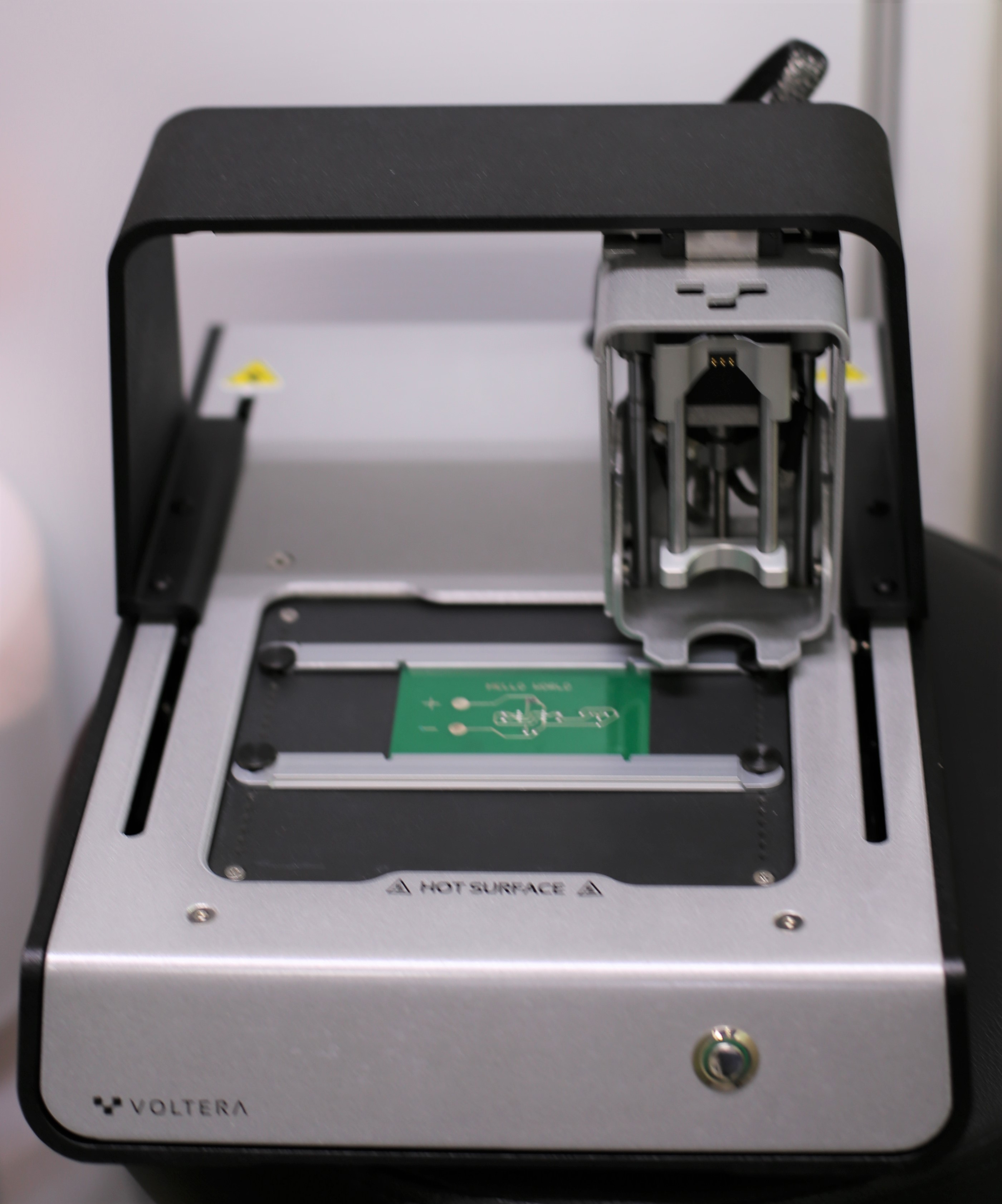

PCB PRINTER

■ Model: Voltera V-ONE
■ Minimum Trace Width: 0.2 mm
■ Minimum Passive Size: 1005
■ Minimum Pin-to-Pin Pitch: 0.62 mm
■ Resistivity: >12mΩ/sq @ 70um height
■ Supplied Substrate Material: FR4
■ Maximum Board Thickness: 3 mm
■ Print Area: 128 mm x 105 mm
■ Max. Heated Bed Temperature: 240℃

3D PRINTER

■ Model: Ultimaker S5
■ Build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
■ Assembled dimensions: 495 x 585 x 780 mm (19.5 x 23 x 30.7 inches)
■ Print technology: Fused filament fabrication (FFF)
■ Compatible filament diameter: 2.85 mm
■ Weight: 20.6 kg (45.4 lbs)
■ Maximum power output: 500W
■ XYZ resolution: 6.9, 6.9, 2.5 micron
■ Ptint head: Dual extrusion print head with an auto-nozzle lifting system and swappable print cores

ION SUPUTTER COATER

■ Model: G20
■ Degree of Vacuum: 2.0 x 10-1 Torr
■ Ion Current: 1 to 10mA (1mA/step)
■ Target Material: Au or Pt
■ Chamber Size: Φ140mm(D) x 100mm(H)
■ Sample Stage: Φ50mm(D) x 30mm(H)
■ Target Size: Φ50mm(D)
■ Sputter Time: 1 to 600sec (1sec/step)
■ Vacuum Pump: 100L/min, Rotary Pump
■ Power:220VAC ±10%, 50/60Hz Single Phase. Max.

ROTARY VACUUM EVAPORATOR

■ Model: Eva-05
■ Condenser Type: Vertical-Type
■ Flask-Evaporating: 0.1~5Lit, Included 1 Lit Evaporating Flask
■ Flask-Receiving: 0.1~3Lit, Included 1Lit Receiving Flask
■ Rotation Speed: 10~300 rpm
■ Evaporating Capability: Max. 23 ml/min
■ Vacuum Seal: Double Sealing Rings made of Teflon + Viton Material
■ Dimension & Net Weight : 510*438*h519 (Max. 714)mm, 16kg
■ Electrical Reqts. : AC220V, 50/60Hz or AC110V, 60 Hz

OPTICAL MICROSCOPE

■ Model: BX53MTRF
■ Optical system: UIS2 optical system (infinity-corrected)
■ Microscope frame (Illumination): Reflected/transmitted
■ Microscope frame (Focus): Stroke: 25 mm/Fine stroke per rotation: 100 μm/Minimum graduation: 1 μm/With upper limit stopper, torque adjustment for coarse handle
■ Transmitted light: White LED, Abbe/long working distance, condensers
■ Weight: Approx. 18.3 kg (Microscope frame 7.6 kg)

ELECTRONIC BALANCE

■ Brand Name: CAS
■ Model: CUW-620HX
■ Minimum display: 0.001g
■ Repeatability: <0.001g
■ Lineaity: ±0.002g
■ Response time: 1.5-2.5s
■ Pan size: 108(W) X 105(D)mm
■ Display: LCD with backlight

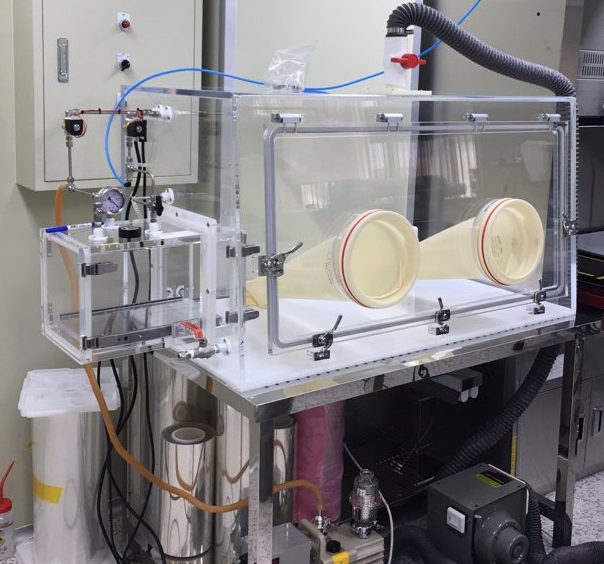

GLOVE BOX

■ Model: G1171
■ Total Size: 1500(W) x 650(D) x 650(H) mm
■ Main Chamber Size: 1172(W) x 650(D) x 650(H) mm
■ Main Chamber material: Special clean PMMA plate 15mm
■ Glove: 8" Latex Glove 1 pair
■ Option: Press Control Foot Switch

ULTRASONIC CLEANER

■ Model: NHPC-B3010S(B)
■ Capacity: 10 L
■ Tank size (WxDxH): 295 x 240 x 150
■ Target Material: Au or Pt
■ Time Range: 1 ~ 99 min, 4 hour
■ Transducer: B.L.T Type
■ Ultrasonic Frequency: 68kHz, 80kHz, 100kHz, 132kHz 선택
■ Input Power: AC 220V / 60Hz
■ Ultrasonic Power: 300 W
■ Heater Power: 190 W

ULTRASONIC PROCESSOR

■ Model: VC-505
■ Power supply : VC-505, 500 Watts
■ Converter : CV334
■ Standard probe :25mm Solid probe (100 - 1,000 ml)
■ Support stand
■ Coverter clamp

MELT FLOW INDEXER

■ Brand Name: QMESYS
■ Model: QM280
■ Material: Alluminum & Thermo Power Coating
■ Temp. Range: Ambient ~ 350ºC
■ Temo. Accuracy: ±0.1ºC at 190ºC
■ Power: AC 220V, 50/60 Hz
■ Net Weight: 28kg

DIGIMATIC MICROMETER

■ Brand Name: Mitutoyo
■ Part Number: 293-100
■ Measurement range: 0-25mm
■ Measurement Accuracy: ±0.5㎛
■ Resolution: 0.0001mm/0.0005mm (전환 가능)
weight: 400g
gauging pressure: 7~9N

3 ROLL MILL

■ Model: G-LINE 50
■ Roller gap to 10µm
■ Precise setting of the roller gap, no dry running possible
■ Up to 5l/h throughput with a gap width of 10µm
■ Continuously adjustable circumferential speed of the rollers
■ Interchangeable roller set
■ Ceramic or hardened chrome rollers

CNC CARVING MACHINE

■ Model: MC-3040 4D 500W
■ Machine size : 625mm * 510mm * 410mm
■ Processing range XYZ : 370mm * 280mm * 55mm
■ Transport system : 1204 ball screws
■ Maximum speed : 0~3500 mm/min
■ Spindle motor : 500W DC Motor, 1000~8000 RPM/min

OSCILLOSCOPE

■ Model: MDO3014
■ Analog Bandwidth : 100 MHz
■ Sample Rate : 2.5 GS/s
■ Record Length : 10 Mpoints
■ Analog Channels : 4
■ Digital Channels : 16 (optional)
■ Spectrum Analyzer : Up to 3 GHz

PICOAMMETER

■ Model: 6485
■ Cost-effective low current measurement solution
■ 10fA resolution
■ 5-1/2 digit resolution
■ <200μV burden voltage
■ Up to 1000 readings/second
■ Built-in Model 485 emulation mode
■ IEEE-488 and RS-232 interfaces
■ Analog output

PROBE STATION

■ Model: MST-4000A
■ 6″ ambient coaxial chuck_Low leakage current chuck
■ Vacuum Switch : center on&off switch
■ Isolation Surface Chuck with Ground
■ Platen : White Suss Sending & Glass Coation for ESD
■ Vacuum Switch for Positioner 1, On/off
■ X/y Stage Travel : 35 x 35mm

IMPEDANCE ANALYZER

■ Model : 4192A
■ 5 Hz to 13 MHz variable frequency
■ Swept measurement capability
■ Gain-phase measurements: amplitude, phase, group delay
■ Floating or grounded devices
■ Impedance measurement: |Z|, |Y|, Theta, R, X, G, B, L, C, D, Q, Delta, Delta%
■ GPIB

MINI HOT PRESS MACHINE

■ Model (Company): QM900L (LIMOTEM)
■ Temp. Range: RT ~ 350℃ (Max.320℃)
■ Temp. Controller: Digital P.I.D System / Up, Down (1Ea/Each)
■ Dimensions: 500W x 400D x 750Hmm
■ Power: 220VAC, 60HZ, 4KW

SOURCEMETER

■ Model (Company): 2400(Keithley)
■ Five instruments in one (IV Source, IVR Measure)
■ Seven models: 20-100W DC, 1000W pulsed, 1100V to 1μV, 10A to 10pA
■ Source and sink (4-quadrant) operation
■ 0.012% basic measure accuracy with 6½-digit resolution
■ 2-, 4-, and 6-wire remote V-source and measure sensing
■ 1700 readings/second at 4½ digits via GPIB

PRECISION LCR METER

■ Model (Company): 4284A (HEWLETT PACKARD)
■ Wide Range DC Current Biased Inductance Measurement
■ 0.05% basic accuracy
■ 40 A DC support with the Keysight 42841A Bias Current Source

AUTOMATIC FILM APPLICATOR COATER

■ Model (Company): ZAA 2300 (Zehntner)
■ Drawing speed: 0-99 mm/s
■ Drawing resolution: 1 mm/s
■ Application length: 1 mm – 400 mm
■ Application width: 1 mm – 300 mm
■ Application standard: ASTM D 823-95

FUME HOOD

■ Model (Company): NA (JISICO)
■ Height: 1.8 m
■ Width: 1.6 m
■ Exhaust Fan: Velocity Control (Inverter Type)

SCREEN PRINTER

■ Model (Company): SPR-20 (Novastar)
■ Dimensions: 533 x 711 x 280 mm^3
■ Weight: 23 Kg
■ Print Area: 305 x 380 mm^2
■ Outside Frame: 508 x 432 mm^2
■ Z Control: 19 mm
■ Theta Control: ±3°

DI WATER PURIFIER

■ Model (Company): Arioso Power I+70 (S)-Analog gauge (Human Co.)
■ Max. RO: 15 L/Hr
■ UP: 70 L/Hr
■ Pure water (RO): 0.2 to 250.0 ㎲/cm
■ Ultra Pure (UP): Up to 18.3 ㏁·cm

NATURAL CONVECTION OVEN

■ Model (Company): ON-22 (Lap Companion)
■ Chamber Volume: 135 L (610 X 460 X 485 mm^3)
■ Temperature: RT – 250 ℃
■ Fluctuation at 100 ℃: ±0.3 ℃

CO2 LASER CUTTING MACHINE

■ Model (Company): ROFIN, OEM 10I 9.3 MICRO (ROFIN)
■ Wavelength: 9.3 micro
■ Power: Max. 90 W

INFINITY PROBE WITH CANON 6D DSLR

■ Model (Company): Infinity Probe & Canon 6D DSLR
■ Macrolens
■ Microlens: 4~16X
■ Ring-flash

LASER CONFOCAL DISPLACEMENT METER

■ Model (Company): LT-9010 (KEYENCE)
■ Measurement range: ± 0.3 mm
■ Reference distance: 6 mm
■ Resolution: 0.01 ㎛
■ Scan width/interval: 0 to 1100 ㎛ (6 steps) / 1 to 10 ㎛ (4 steps)
■ Sampling cycle: 0.640 ms to 356 ms (14 steps)
■ Light source spot diameter: Approx. ø2 ㎛

VACUUM DRYING OVEN

■ Model (Company): THERMOSTABLE SOV-30 (대한과학)
■ Temperature range: 10~200 °C
■ Vacuum range: 10~750 mmHg

LAMINATOR

■ Model (Company): GMP EXCELAM PLUS 355R
■ Temperature: 150 °C, Max
■ Pressure: Manual, 6 steps

CLEANROOM

■ Area: 3.5 m x 6 m (21 m^2)
■ Equipment inside: Fume Hood, Vacuum Dry Oven, Convection Oven, Automatic Film Applicator, Laminator, Overhead Stirrer, Magnetic Stirrer, Hot Plate, Desiccator, Screen Printer, etc.
■ Class: 1000

PIEZOFIBER DRAWING TOWER

■ Height: about 4 m
■ Components: Preform feeder, furnace, poling device, diameter gauge, coating cup, curing oven, capstan, take-up winder
■ Diameter of final fiber: hundreds micrometer

WORKSTATION

■ Number of Workstations: 3
■ CPU: Intel Xeon E5-2695V2 (2.4Ghz/30MB/12C24T) X 2
■ RAM: DDR3 ECC 16GB X 6 = 96GB
■ SSD: 840 EVO 240GB SATA3
■ HDD: SATA3 4TB / 7200rpm
